ZINC ALLOY ANODE

POSITION： HOME > PRODUCTS > ZINC ALLOY ANODE >

Ribbon Zinc Alloy Sacrificial Anode

2024-04-07 11:01:18

share：
< BACK >

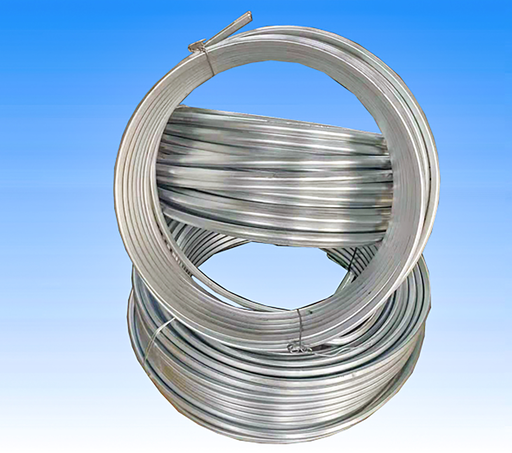

Ribbon Zinc Alloy Sacrificial Anode

Application:

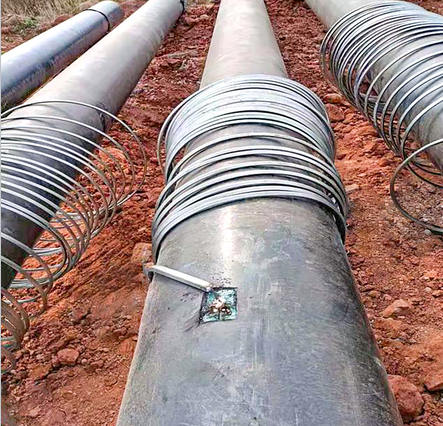

AC mitigation, Pipeline cathodic protection, Grounding overhead structures...


Specifications:

Size

ZR-1

ZR-2

ZR-3

ZR-4

Section size(mm)

25.4×31.75

15.88×22.22

12.70×14.28

8.73×10.32

Weight(kg/m)

3.57

1.785

0.893

0.372

Steel core   dia(mm)

4.70

3.43

3.30

2.92

Standard roll   length(m)

30.5

61

152

305

Standard roll   dia(mm)

900

600

300

300

Tolerance of   steel core(mm)

-2~+2
